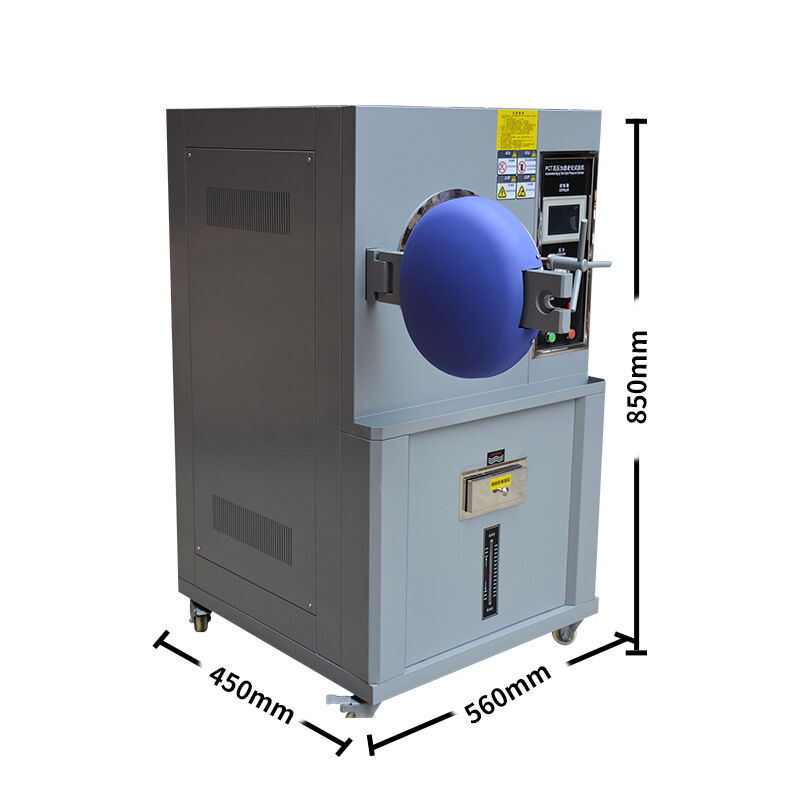

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

PCT Test Chamber

Description:
Temperature & Humidity Test Chamber, High Temperature Test Chamber, Dry Oven, Alternating Temperature Test Chamber, Alternating Temperature & Humidity Test Chamber, Temperature Rapid Change Test Chamber, Temperature & Humidity Rapid Change Test Chamber, Alternating Temperature & Alternating Humidity Rapid Change Chamber, Thermal Shock Test Chamber (Two-zone / Three-zone), Large Walk-in Test Room.
These chambers are primarily used to evaluate the physical and related properties of electrical and electronic products, components, parts, metal materials, and magnetic materials under simulated climatic conditions such as high temperature, high humidity, and pressure. Through testing, they help determine whether product performance meets required specifications, supporting product design, improvement, verification, and factory acceptance.

Material:

1Test box size: PCT-30 (300x L500 mm), round test box

2 Overall dimensions: 900x 900 x 1600 mm (W * D * H)

3 Inner barrel material: stainless steel plate (SUS # 316 3 mm) or plastic spray

4 Outer barrel material: stainless steel plate material

5 Insulation material: rock wool and rigid polyurethane foam insulation

6 Steam heating chamber heating tube: titanium tube heating, never rust.

Mechanical structure:

a. Round inner box, stainless steel round test inner box structure, in line with industrial safety container standards, can prevent dew dripping during the test.

b.The circular web lining and stainless steel circular web lining design can avoid the latent heat of steam directly impacting the test product.

c. Precision design, good air tightness, low water consumption, continuous 400Hrs operation with each water addition.

d. The patented packing design makes the door and the box more closely integrated, which is completely different from the traditional squeeze type, which can extend the packing life.

e.Critical point LIMIT mode automatic safety protection, abnormal cause and fault indicator display.

Control system:

a. Use touch controller to control test temperature, time and information query and data export.

b. Use the pointer to display the pressure gauge.

c. Microcomputer P.I.D automatic calculation to control the temperature of saturated steam.

d. Manual water inlet valve (automatic water supply function, continuous test without stopping).

Product parameters:

Features:

1. Adopting dual-circuit structure of imported high temperature-resistant solenoid valve, which reduces the failure rate to the greatest extent.

2. Independent steam generation chamber, avoid direct impact of steam on the product, so as not to cause partial damage to the product.

3. The labor-saving structure of the door lock solves the shortcomings of the disc-type handle of the first generation product which is difficult to lock.

4.Exhaust the cold air before the test; the design of the exhausted cold air (exhaust air in the test barrel) during the test improves the pressure stability and reproducibility.

5. Ultra-long-term experiment running time, long-term experiment machine running for 1000 hours.

6. Water level protection, detection and protection through water level sensor in the test room.

7.tank pressure resistance design, the pressure resistance of the cabinet (140 ℃) is 2.65kg, which meets the water pressure test of 6kg.

8. Two-stage pressure safety protection device adopts two-stage combination controller and mechanical pressure protection device.

9. Safety protection pressure release button, two-stage automatic pressure release button of emergency safety device

10. Full touch controller, support U disk export history

Product details:
